E39/E40 Bulb EC Series

EC 120W High power bulb

Category:LED HIGH POWER BULB > E39/E40 Bulb EC Series
Model:GHB120-W.A.EC

Input Voltage (V): AC100-277V

Lamp Power (W): 120W

Lamp Luminous Flux (lm): 15000

Lamp Luminous Efficiency (lm/w): 120~135

CRI (Ra>): 80

Working Temperature (℃) : -40 - +45

Ingress protect : IP65

Certification: CE/ROHS/ETL/DLC

Inquiry
  • Specifications
  • Dimension
  • Package
  • Installation
  • Replacement


1. Special design "Luxury Torch", Fin style heat sink for better heat dissipation performance

2. Perfect replacement for MHL/HPS/CFL/CORN lamp, up to 400W

3. Mogul base, easy to install &replace, widely usage

4. Ultra-light weight, max weight is less than 1.65 kg

5. High luminous efficiency to save more energy, max 135lm/w

6. 100% flicker free, protect your eyes from hurt

7Smart led driver inside, intelligence temperature-control design, OTP function


Application area:

Retrofit workshop, factory building, warehouse, gas station, parking lot, car shop,

basketball court, badminton court, sport court, supermarket, stadium, highway toll station etc.



 Model

 GHB120-W.A.EC

 Replacement

 400W

 Power

 120W

 Luminous Flux

 15000lm

 Input Voltage

 AC100~277V 50/60 Hz

 Installation

 E39/E40

 Driver

 Internal driver

 CRI

 80-90Ra

 Color Temperature

 2700K~6500K optional

 Beam angle

 160°

 Power Factor

 >0.9

 Life Spam

 50,000 Hours

 Warranty

 5 Years

 Protection Grade

 IP65

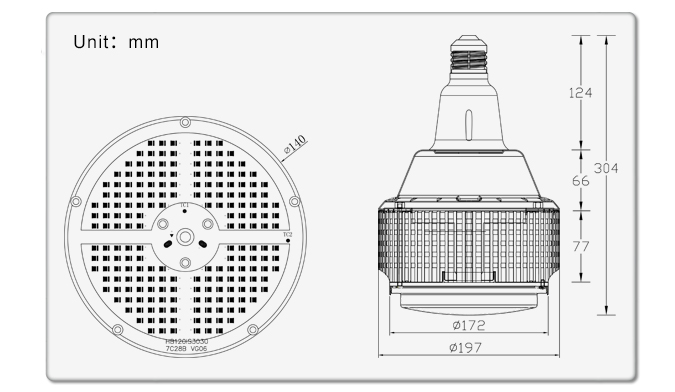

 Dimension

 φ197*304 mm

 Material



 Lamp Shell: Aluminum
 Cover: Flame retardant PMMA

 Series

 40W, 60W, 80W, 100W, 120W
